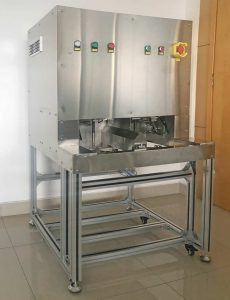

Automatic Tomato Peeling Machine for Sale is used to peel tomato by blade automatically. It also suitable for peel Oranges, Apples, Kiwi, Lemon, Mango, Tomato, Pear, Papaya, Chayote, Avocado, Grapefruit, Guava, Persimmon and other round shape fruit and vegetable. It is with high peeling rate. It is multi-functional, which includes peeling, double ends cutting, coring, slicing, separation and color-protecting. This fruit peeling machine has been widely used in fruit and vegetable processing line.
Table of Contents
Advantage Feature of Tomato Peeling Machine
This machine can figure out fruit height and diameter automatically, so it adapts well to irregular-shaped fruits. Paring knives can automatically track changes in fruit shape and thus causing little fruit damage. The main material of the whole machine frame is high-quality stainless steel, wholly computer-controlled, PLC and other electronic components are products of Japan Omron. This product has won the European CE certificate. It is essential for fruit and vegetable processing.
Structure and Principle
The equipment is consist of many parts, including the outer shell, body frame, fruit bases, fruit passing fork, conveyor, fruit setting bases, main motor, paring knife, end cutter, coring knife, PLC touch screen and other parts. It is able to peel, cut ends, remove core and slice at the same time or separately. It fits fruit diameter and height automatically and the peeling thickness is adjustable.
Firstly, choose fruits according to diameters, eliminate super high, super soft and super small fruits, sample 1-3 fruit ready to peel, then start the equipment to determine the thickness of peeling and ends cutting. Regulate all the actuators, set up actions and parameters. Put fruit one by one, right into the fruit bases,then they can be peeled, cut ends, cored. Finally, fruit pulp, skin, end skin and cores go out from three separate holes.
Specification of Tomato Peeling Machine
- Capacity: 1200 pcs/h
- Fruit diameter: 40-100mm
- Fruit height: 40-120mm
- Peeling thickness: 0.5-3mm
- Protect Color tank volume: 30L
- Power: 0.6kw (not include air compressor)
- Weight: 260kg
- Size: 1750*750*1450mm
Working Video of Tomato Peeling Machine
